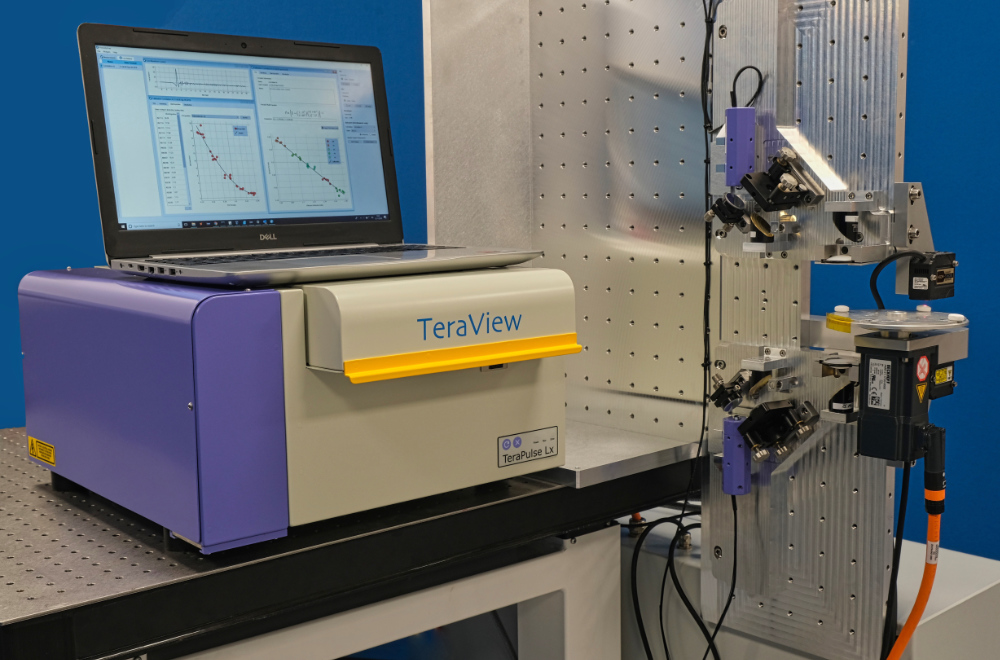

TeraPulse Lx

    TeraPulse Lx系统是太赫兹光谱分析领域世界领先的TeraView公司最近推出的太赫兹分析的时域光谱仪。可满足研究者太赫兹成像和光谱的需求。

    该系统模块化的结构事得用户可以灵活地扩展其测试功能,只需添加与之配套的功能模块,凭借其可靠的光纤接口模块即可轻松实现各个扩展模块的即插即用。全系统包含TeraView公司的光电导天线和探测器。全新的TeraPulse Lx样品舱室有光纤耦合采样,拥有无以伦比的稳定性和便捷性。

    轻量化设计的核心模块单元便于该仪器随意搬运至任何所需实验地点,即可在桌面,也可以置于19”标准仪器架 。 该系统的标配产品是业界最领先的3200ps延时线(意味着高精度)。

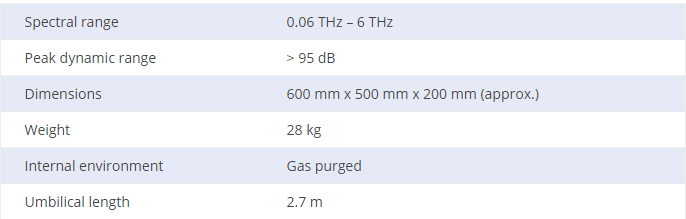

系统参数:


产品特性:
  • User-friendly connections for attaching a range of plug and play emitter/receiver modules.
  • Intuitive software suite for acquiring data in reflection and transmission modes for imaging and spectroscopy.
  • Advanced GUI for display of data in time and frequency domains and readily exportable in a number of formats.
  • Single laser system so any jitter between emitter and receiver pulses is minimised through common mode rejection.
  • Short warm-up time and no recalibration needed before or during running.
  • 3200 ps time-delay line with patented rapid scanning delay line also available as an option.
  • IEC 60825-1 Class 1 laser product.
